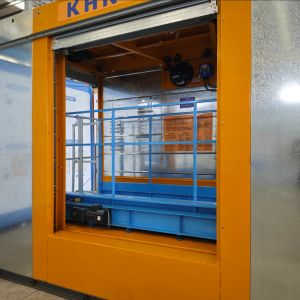

Rack-and-Pinion Construction Lift with Cage & Retractable Load Deck
Model: SC-200, SC200/200, SC320, SC320/320
Brand: KANGBO
Origin: Made in China | Certifications: CE, TÜV, ISO 9001
1. Product Snapshot
Move men, masonry and palletised materials to any floor—without changing equipment.
Our SC series rack-and-pinion hoist combines a 2000-3200kg / 25-person cage with a retractable loading deck that slides out in seconds to create a flush, 1 500 kg goods platform. One machine, maximum site efficiency.
2. Why Contractors Choose the hoists combine with loading deck
Dual-mode cage: carry personnel OR cargo on the same lift—deck retracts for safety when transporting people.
Rack-and-pinion drive: no hydraulic hoses to burst; climbs 0–63 m/min smoothly even in 55 °C heat or –20 °C frost.
495 m max. height: bolted mast sections (650 × 650 × 1.508 m, hot-dip-galvanised) let you follow the building floor-by-floor.
Over-load & over-speed protection: FC control motors + centrifugal safety device automatically engages if descent overspeed.
Tool-less assembly: captive bolts, laser-milled rack and colour-coded cables cut install time by 30 %.
LED floodlighting & interlocked doors as standard; full compliance with EN 12159 & ANSI A10.4.
3. Key Specifications
Payload (cage mode): 2000 kg / 25 persons
Payload (platform mode): 1500 kg
Lifting speed: 0–63 m/min (VFD)
Max. erection height: 495 m
Cage size: (L×W×H): 3.2 × 1.5 × 2.35 m
Retractable deck extension: 1.2 m
Mast section: 650 × 650 × 1.508 mm, galvanized
Power supply: 380–480 V / 50–60 Hz / 3-ph
Motors: IP55, frequency-control
Safety device: Centrifugal brake + overload sensor
Operating temp.: –20 °C to +55 °C
Finish: Shot-blast SA 2.5, zinc-rich primer + polyurethane top coat (any RAL)
4. Standard Configuration Includes
✓ Complete cage with retractable deck & non-slip checker plate
✓ 6 × mast sections + 1 × wall tie (first 15 m)
✓ VFD control cabinet with world famous components
✓ Landing-call buttons & floor-selector joystick
✓ Self-erecting 500 kg davit crane for mast addition
✓ Spare 1 m rack, safety device test handle & tool kit
5. Optional Upgrades
Twin-cage arrangement ( SC-200/200 )
Derated 1 000 kg cage for glass-panel transport
Custom cage lengths up to 4.2 m
6. Packaging & Shipping
Seaworthy frame + shrink wrap, 40’ HQ container fits 55 m single cage set
Lead time: 25 days (1–3 units) | 30 days (4–10 units)
Incoterms: FOB, CIF, CFR, DAP supported
7. Warranty & After-Sales
24-month or 2000 operating-hours warranty, whichever comes first
Free online commissioning & operator training via Zoom/Teams
24/7 English hot-line: +86-13950102375
8. FAQ
Q: Can the deck be retro-fitted to my existing rack-and-pinion hoist?
A: Yes—send us your cage drawing; we supply a bolt-on kit with CE declaration.
Q: Do you provide mast anchorage drawings?
A: Static & dynamic calculations stamped by a European PE are included free.
Q: What is the typical power consumption per lift cycle?
A: ≈ 0.35 kWh per 100 m travel at 1 500 kg payload—70 % less than traction hoists.
